M215

Item No.: 00184
Description
Description

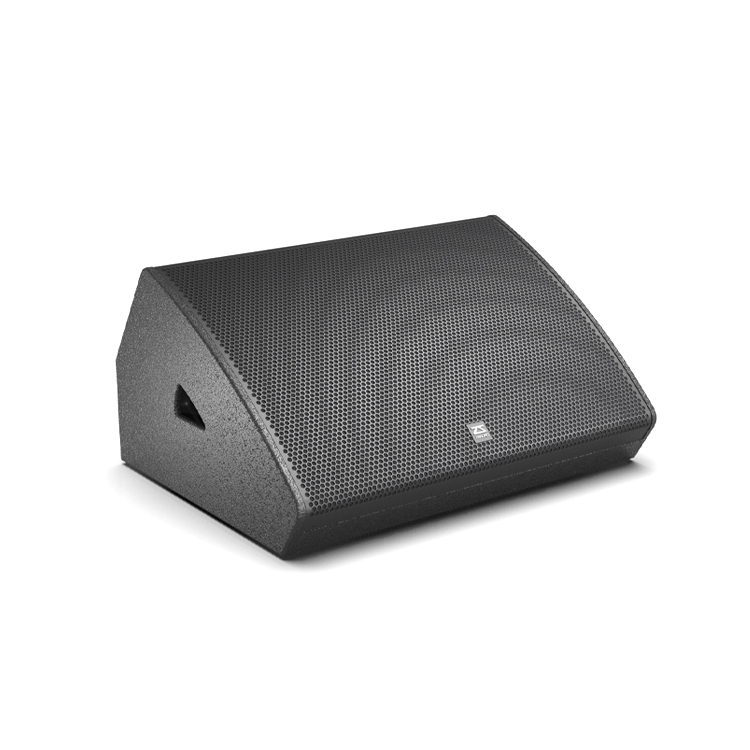

​M215 Multi-Application Speaker​

Applications

  • Church reinforcement
  • Stage monitoring
  • Theatre & concert halls

Key Features

  1. Tri-functional enclosure with 60°×80° coverage
  2. 3" neodymium HF driver (75mm voice coil)
  3. Dual 15" woofers with high transient response
  4. 3D rigging capability (Front/Side/Top)

Technical Specifications

Parameter Value/Description
Frequency Response 65 Hz-16 kHz (±3 dB)
45 Hz-18 kHz (-10 dB)
Coverage Angle (-6dB) 60°(V) × 80°(H)
Sensitivity (@1w/1m) 98 dB SPL
Power Handling (AES) 1000W
Nominal Impedance 8 Ω
Maximum SPL 138 dB (peak)
Driver Configuration LF: 2×15" woofers (75mm VC)
HF: 1×3" compression driver (75mm VC)

Physical Data

Parameter Value/Description
Dimensions (H×W×D) 424×835×644 mm
Weight 40 kg (88 lbs)
Connectors Neutrik NL4 (1+1 configuration)
Cabinet Material 15mm multi-plywood
Finish Black polyurea coating
Grille Black epoxy mesh + acoustic foam

System Integration

  • Triple suspension points (Front/Side/Top)
  • 45Hz-18kHz phase-coherent design
